Place of Origin : China
Brand Name : CNOEC, OPTO-EDU
Certification : CE|Rohs
Model Number : A15.2702
MOQ : 1 pc
Price : Negotiation
Packaging Details : Carton Packing, For Export Transportation
Delivery Time : 5~20 Days
Payment Terms : T/T, West Union, Paypal
Supply Ability : 5000 pcs/ Month
application : Research|Laboratory
Drawtube : Binocular
Illumination : LED
magnification : 40x - 1000x
Theory : Polarizing Light Microscope
Specifications:
| Specification | A15.2702 Transmitted and Reflected Polarizing Microscope | A | B |
| Optical System | UCIS infinity independent achromatic optical system | ||
| Head | Seidentopf binocular head 30° inclined, rotatable 360°, interpupillary distance 52-75mm | ● |
|
| Seidentopf trinocular head 30° inclined, rotatable 360°, interpupillary distance 52-75mm |
| ● | |
| Magnification | 40x - 1000x | ||
| Eyepiece | Plan WF10x/20mm, high eyepoint up to 21mm, | ||
| Plan WF10x/20mm, polarizing reticule eyepiece | |||
| Objective | Infinity strain-free achromatic objectives 4x, 10x, 40x(s) and 100x (s/oil) | ||
| Focus System | Low positioned, coaxial coarse & fine focusing system with an adjustable tension control and upper limit stop, coarse 14mm/rot, fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm | ||
| Nosepiece | Quadruple, reversed type with positive click stops | ||
| Condenser | Swing-Out Condenser N.A.1.25 | ||
| Stage | Rotating stage, size 142mm, pre-centered and 360° rotatable | ||
| Specimen holder | |||
| Polarization | The polarizer mounted under the condenser holder rotates 360° with click stops every 45°, scale 0°45°90°135°180°225°270°315° | ||
| The Intermediate tube has a analyzer with large rotation control dial for easy adjustment and accurate reading through rotations of 180°,division 1°,accuracy 6'. The built-in focusable and centerable Bertrand lens allows conoscopic observation. with compensator slot | |||
| Compensator | 1/4λ Plate | ||
| λ Plate, first class red | |||
| Quartz wedge plate, I-IV class | |||
| Kohler Illumination | with field diaphragm | ||
| Transmitetd Illumination | 6V20W Halogen lamp, 110-240V wide voltage | ||
| 6V20W halogen bulb (Osram) | |||
| 250x/3.15A Φ5x20 fuse | |||
| Reflected Illumination | 12V100 Halogen lamp house | ||
| 12V50W Power supply unit | |||
| Reflected illuminator (single module) | |||
| Polarizer slider for reflected illuminator | |||
| Filter | Blue Φ38 | ||
| Adapter | 0.5x, C-Mount |
| ● |
| Other | Immersion Oil | ||
| Φ2mm Allen Screw Driver | |||
| Φ1.5mm Allen Screw Driver | |||
| Dust cover | |||
| Power cord | |||
| Optional Accessories | Item No. | ||
| Eyepiece | WF10X/22mm, high eyepoint up to 21mm | A51.2701-10C | |
| Plan eyepiece 16x/14mm | A51.2701-1614 | ||
| Objective | Strain-free infinity achromatic objective 60x(S) | A5P.2730-60C | |
| Infinity plan achromatic objective 2x | A52.2706-02A | ||
| Infinity plan achromatic objective 4x | A52.2706-04C | ||
| Infinity plan achromatic objective 10x | A52.2706-10C | ||
| Infinity plan achromatic objective 20x(S) | A52.2706-20C | ||
| Infinity plan achromatic objective 40x(S) | A52.2706-40C | ||
| Infinity plan achromatic objective 100x(S, Oil) | A52.2706-100C | ||
| Stage | Attachable mechanical stage | A54.2708-3 | |
| Illumination | Electrical part for 6V30W halogen | A56.2703-20A | |
| Electrical part for 3W LED (with rechargeable battery) | A56.2703-30 | ||
| Upgrade to electrical part for 3W LED | A56.2751-3W | ||
| 6V30W Halogen bulb | A56.2703-30B | ||
| 6V30W Halogen bulb (Osram) | A56.2703-30C | ||
| 3W LED bulb | A56.2705-3B2 | ||
| Filter Φ38 | Green | A56.2706-G | |
| Yellow | A56.2706-Y | ||
| Frosted Glass | A56.2706-F | ||
| Adapter | 1.0x C-Mount | A55.2701-10 | |
|
| 0.25x C-Mount | A55.2701-25 | |

|
|

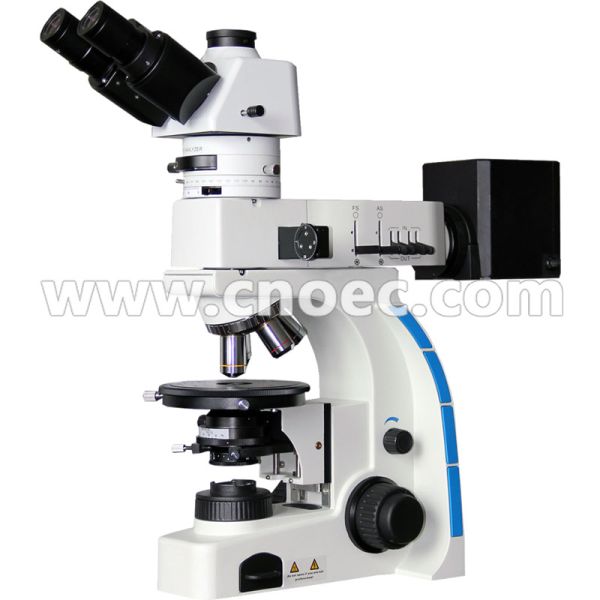

Binocular Polarizing Light Microscope Metallurgical Optical Microscopes A15.2702 Images |
